KPC9612 Plus 9.1
KPC9612 Plus 9.1
*** DB25 SERIAL PORT VERSION ***
After a reset, change the Commands listed below in Blue
(also check the SYSOP Mode subpage for the other commands to setup)
KANTRONICS KPC9612P VERSION 9.1 (with a DB25 Serial port)
(C) COPYRIGHT 2002-2005 BY KANTRONICS INC. ALL RIGHTS RESERVED.
DUPLICATION PROHIBITED WITHOUT PERMISSION OF KANTRONICS.
1. Remove 2 screws

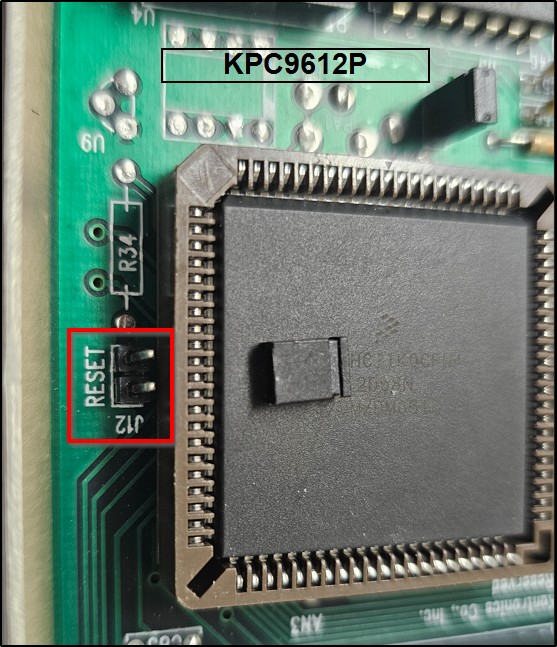

2. Move RESET jumper to both pins on J12
CHECKSUM OK
....RAM OK
128K BYTES
NO CLOCK
REPLACE TEST JUMPER
3. Move RESET jumper back to 1 pin and cycle power
[00][00][00][80][80][00][00][80][00][00][80][80][00][00][80][80][80][80][00][80][80][00][80][80][80][00][80][80][00][00][00][80][00][00][80][80][00][80][00][80][00][00][00][00][80][80][80][80][00][80][00][00][80][00][80][80][80][80][00][80][00][80][80][80][00][00][00][00][80][80][00][80][80][80][80][80][80][00][00][80][00][00][00][00][80][80][80][00][80][00][80][80][80][80][80][00][80]
4. Enter Shift 8 or *
5. Enter your callsign (if used for just a K-Net Node, add the SSID)
ENTER YOUR CALLSIGN=> ve7xxx
6. Enter INTFACE TERMINAL
CMD:INTFACE TERMINAL
INTFACE was NEWUSER
7. Enter DISPLAY
CMD:DISPLAY
8. Save everything from here to the end
9. Do the changes in blue
COMMANDS
| CHANGES
|
8BITCONV ON
| |
ABAUD 9600
| |
AUTOLF ON
| |
AX25L2V2 ON
| |
AXDELAY 0
| |
AXHANG 0
| |
BEACON EVERY 0
| (Change to 0, it disabled the beacon timer)
|
BKONDEL ON
| |
BLT
| |
1 EVERY 00:00:00
| |
2 EVERY 00:00:00
| |
3 EVERY 00:00:00
| |
4 EVERY 00:00:00
| |
BREAK OFF
| |
BTEXT
| (Change to %, it removes the old beacon text)
|
BUDLIST OFF NONE
| |
CANLINE $18 (CTRL-X)
| |
CANPAC $19 (CTRL-Y)
| |
CD INTERNAL
| (Change to SOFTWARE)
|
CHECK 0 (disabled)
| |
CMDTIME 1 (1 sec)
| |
CMSG OFF
| |
COMMAND $03 (CTRL-C)
| |
CONLIST OFF NONE
| |
CONMODE CONVERS
| |
CONOK ON
| |
CONPERM OFF
| |
CPACTIME OFF
| |
CR ON
| |
CRSUP OFF
| |
CSTAMP OFF
| |
CTEXT
| |
CTRL A OFF B OFF
| |
CWID EVERY 0 (disabled)
| |
CWIDTEXT DE VE7xxx
| (Change to your callsign)
|
DAYTIME 01/01/2003 00:00:17
| |
DAYTWEAK 8
| |
DAYSTR mm/dd/yyyy hh:mm:ss
| |
DAMA OFF
| |
DAMACHCK 18 (180 sec)
| |
DBLDISC OFF
| |
DELETE $08 (CTRL-H)
| |
DIGIPEAT ON
| (Change to OFF)
|
DWAIT 0
| |
ECHO ON
| |
ESCAPE OFF
| |
FLOW ON
| (Change to OFF)
|
FILTER OFF
| |
FRACK 4
| (Change to 3)
|
FULLDUP OFF
| |
GPSHEAD
| |
1 $GPGGA
| |
2
| |
3
| |
4
| |
GPSINIT
| |
GPSPORT 0 NORMAL CHECKSUM
| |
GPSTIME VALID RMC
| |
HBAUD 1200
| |
HEADERLN ON
| |
HID ON
| |
HTEXT
| |
INTFACE TERMINAL
| |
KNTIMER 15 min
| |
LEDS ON
| |
LCOK ON
| |
LFADD OFF
| |
LFSUP OFF
| |
LGETCHAR $05 (CTRL-E)
| |
LLIST OFF NONE
| |
LT
| |
1
| |
2
| |
3
| |
4
| |
LTP
| |
1 GPS
| |
2 GPS
| |
3 GPS
| |
4 GPS
| |
LTRACK 0
| |
MONITOR ON
| |
MALL ON
| |
MAXFRAME 4
| |
MAXUSERS 10
| |
MBEACON ON
| |
MCON OFF
| |
MCOM ON
| |
MHEADER ON
| |
MRESP ON
| |
MRPT ON
| |
MSTAMP OFF
| |
MXMIT ON
| |
MYCALL VE7xxx
| (Change to your callsign)
|
MYALIAS disabled
| |
MYDGPS disabled
| |
MYDROP 0
| |
MYNODE VE7xxx-7
| (Change to DISABL)
|
MYPBBS VE7xxx-1
| (Change to DISABL)
|
MYREMOTE disabled
| (Change to your callsign-9)
|
NDWILD OFF
| |
NEWMODE ON
| |
NETCALL disabled
| (Change to your callsign-8 (for 144.970)
|
NETALIAS
| (Change to 497(suffix of your callsign)
|
NETBUFFS 32
| |
NETCIRCS 5
| |
NETDESTS 25
| |
NETLINKS 10
| |
NETROUTE 5
| |
NETUSERS 5
| |
NOMODE OFF
| |
NTEXT
| |
NUMNODES 0
| |
PACLEN 128
| |
PACTIME AFTER 10
| |
PASS $16 (CTRL-V)
| |
PASSALL OFF
| |
PBBS 100
| (Change to 0)
|
PBFORWRD NONE EVERY 0
| |
PBHEADER ON
| |
PBHOLD ON
| |
PBKILLFW OFF
| |
PBLIST OFF NONE
| |
PBLO NEW VARIABLE
| |
PBMAIL OFF
| |
PBPERSON OFF
| |
PBREVERS ON
| |
PBSIZE 0
| |
PBUSERS 1
| |
PERSIST 63 (25%)
| |
PID OFF
| |
PMODE CMD
| |
PTEXT
| |
RANGE 0:255/0:255/0:255/0:255/0:255
| |
REDISPLA $12 (CTRL-R)
| |
RELINK OFF
| |
RETRY 10
| (Change to 6 to reduce congestion)
|
RING ON
| |
RNRTIME 0 (disabled)
| |
RTEXT
| (Change to your password)
|
SCREENL 0
| |
SENDPAC $0D (CTRL-M)
| |
SLOTTIME 10 (100 msec)
| |
START $11 (CTRL-Q)
| |
STOP $13 (CTRL-S)
| |
STREAMSW $7C (|)
| |
STREAMCA OFF
| |
STREAMEV OFF
| |
SUPLIST OFF NONE
| |
SWP 17,17,108
| |
TELEMTRY 0
| |
TRACE OFF
| |
TRFLOW OFF
| |
TRIES 10
| (Change to 6 to reduce congestion)
|
TXDELAY 30 (300 msec)
| |
TXFLOW OFF
| |
UNPROTO CQ
| |
UIDIGI OFF NONE
| |
UIDUPE 0 (disabled)
| |
UIDWAIT OFF
| |
UIFLOOD disabled,30,NOID
| |
UITRACE disabled,30
| |
USERS 1
| (Change to 10)
|
XFLOW ON
| (Change to OFF)
|
XKCHKSUM OFF
| |
XKPOLLED OFF
| |
XMITLVL 100
| (Change TX audio to xxx for 2.75 kHz deviation)
|
XMITOK ON
| |
XOFF $13 (CTRL-S)
| |
XON $11 (CTRL-Q)
|
22 COMMANDS
| CHANGES
|
AUTOLF OFF
| ON
|
BEACON EVERY 0
| 0
|
BTEXT %
| %
|
CD INTERNAL
| SOFTWARE
|
CWIDTEXT DE VE7xxx
| your callsign
|
DIGIPEAT ON
| OFF
|
FLOW ON
| OFF
|
FRACK 4
| 3
|
INTFACE TERMINAL
| TERMINAL
|
MYCALL VE7xxx
| your callsign
|
MYNODE VE7xxx-7
| DISABL
|
MYPBBS VE7xxx-1
| DISABL
|
MYREMOTE disabled
| callsign-9
|
NETCALL disabled
| callsign-8
|
NETALIAS
| 497(plus the suffix of your callsign)
|
PBBS 100
| 0
|
RETRY 10
| 6
|
RTEXT
| Your password
|
TRIES 10
| 6
|
USERS 1
| 10
|
XFLOW ON
| OFF
|
XMITLVL 100
| xxx for 2.75 kHz deviation)
|
Notes:
MYCALL = For RMS RELAY-POST OFFICE Callsign-10
MYCALL = For NODE Callsign-8 (144.970) / Callsign-7 (145.690) / Callsign-6 (440.125)
NETCALL SSID = 144.970 = -8, 145.690 = -7, 440.125 = -6
NETALIAS PREFIX = 144.970 = 497, 145.690 = 569, 440.125 = 440
NETALIAS SUFFIX = You callsign suffix
